Main Technical Specifications
- AGM technology applied in Seal VRLA Battery
- Float charge service life under normal operation at 25℃ would be 12 years
- Positive grid is made of special multi alloy, which overcomes the shortcomings of early capacity loss. It has long service life under both float charge and cycle utilization.
- Separator: made of absorbing super-thin fiber glass its internal resistance is low and the discharge performance at high rate is good.
Main applications
- Signal system、 Telecom、 Mobile、 Unicom、 railway、 shipbuilding and other standby power
- Emergency lighting system
- UPS
Product characteristics
- Recommended float charge voltage:2.25V/cell at 25℃(77℉)
- Recommended boost charge voltage:2.35V/cell at 25℃(77℉)
- Self-discharge :≤ 8％（at 25℃, 90 days）
- Wide operating temperature range: -40℃~55℃Recommended operating temperature: 15℃～25℃
- Max charge current: 0.2C
- Valve regulated system, no water addition needed

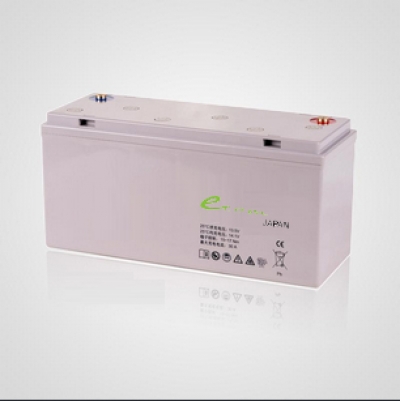

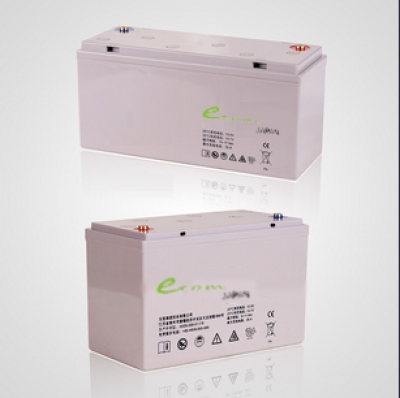

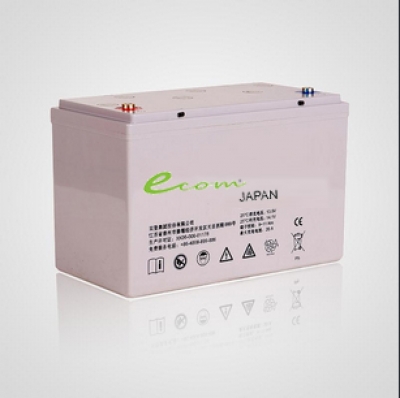

6-GFM series battery specification
| Type |
Rated Voltage(V) |
C10 rated |
Dimensions(mm) |
Weight(kg) |
| capacity(Ah) |
L |
W |
H |
Total Height |
| Seal VRLA -24 |
12 |
24 |
165 |
125 |
175 |
180 |
9 |
| Seal VRLA -38 |
12 |
38 |
197 |
165 |
175 |
180 |
13 |
| Seal VRLA -50 |
12 |
50 |
259 |
133 |
190 |
202 |
16 |
| Seal VRLA -65 |
12 |
65 |
258 |
168 |
208 |
214 |
22 |
| Seal VRLA -80 |
12 |
80 |
258 |
168 |
208 |
214 |
24 |
| Seal VRLA -100 |
12 |
100 |
331 |
174 |
211 |
220 |
30 |
| Seal VRLA -120 |
12 |
120 |
405 |
171 |
223 |
231 |
36 |
| Seal VRLA -150 |
12 |
150 |
496 |
203 |
226 |
236 |
49 |
| Seal VRLA -200 |
12 |
200 |
496 |
259 |
226 |
236 |
64 |
